CA-410 Color Analyzer

The CA-410 is an optical measuring device used for inspection and adjustment of white balance* and gamma* at factories producing TVs, smartphone displays, etc. Designed as the successor of the CA-310, which is reputed for its rapid, accurate measurement, the CA-410 similarly offers high-speed, high-accuracy measurement of higher-dynamic-range (HDR) displays, including OLED displays.

CA-410系列符合 VESA DisplayHDR量測要求。

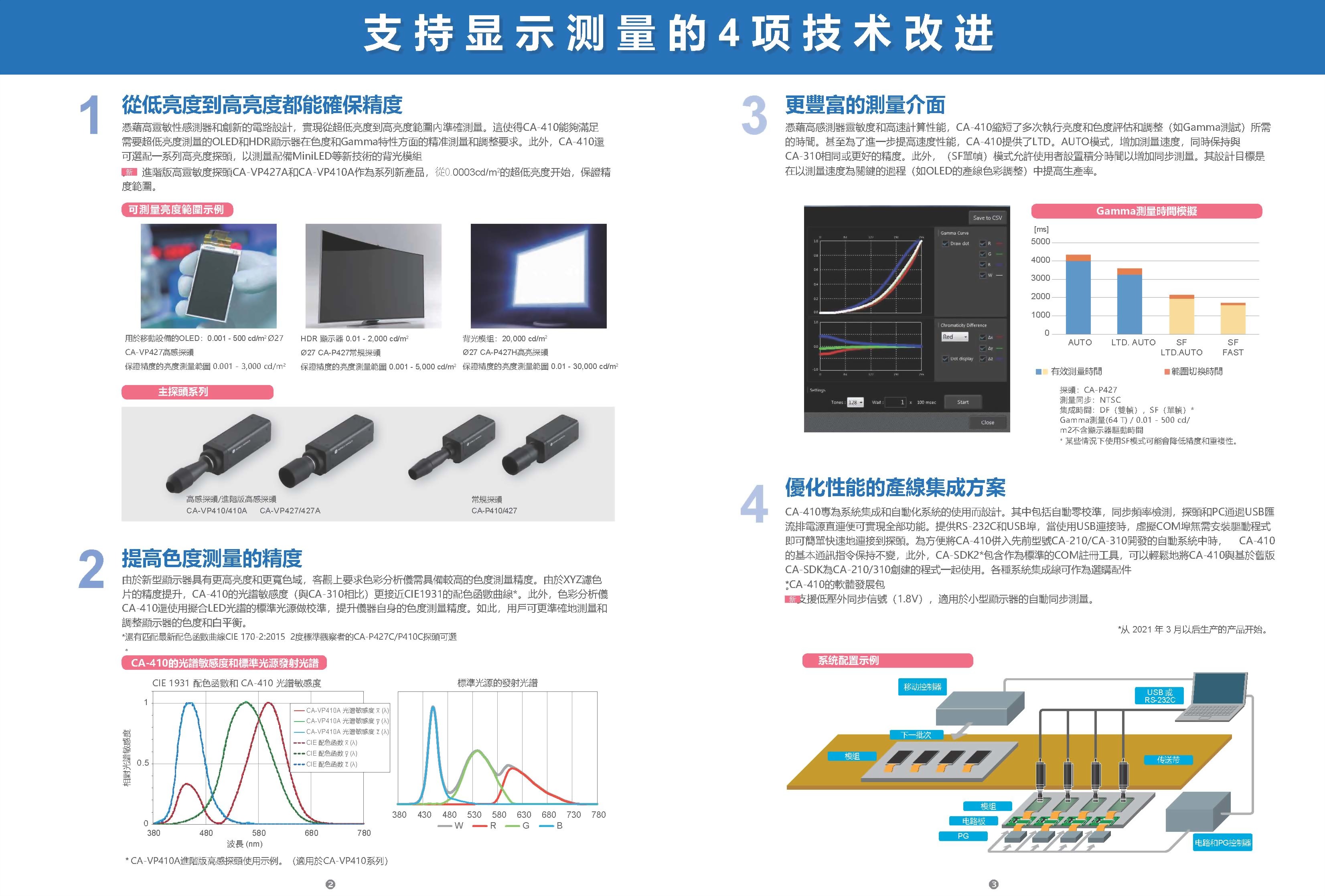

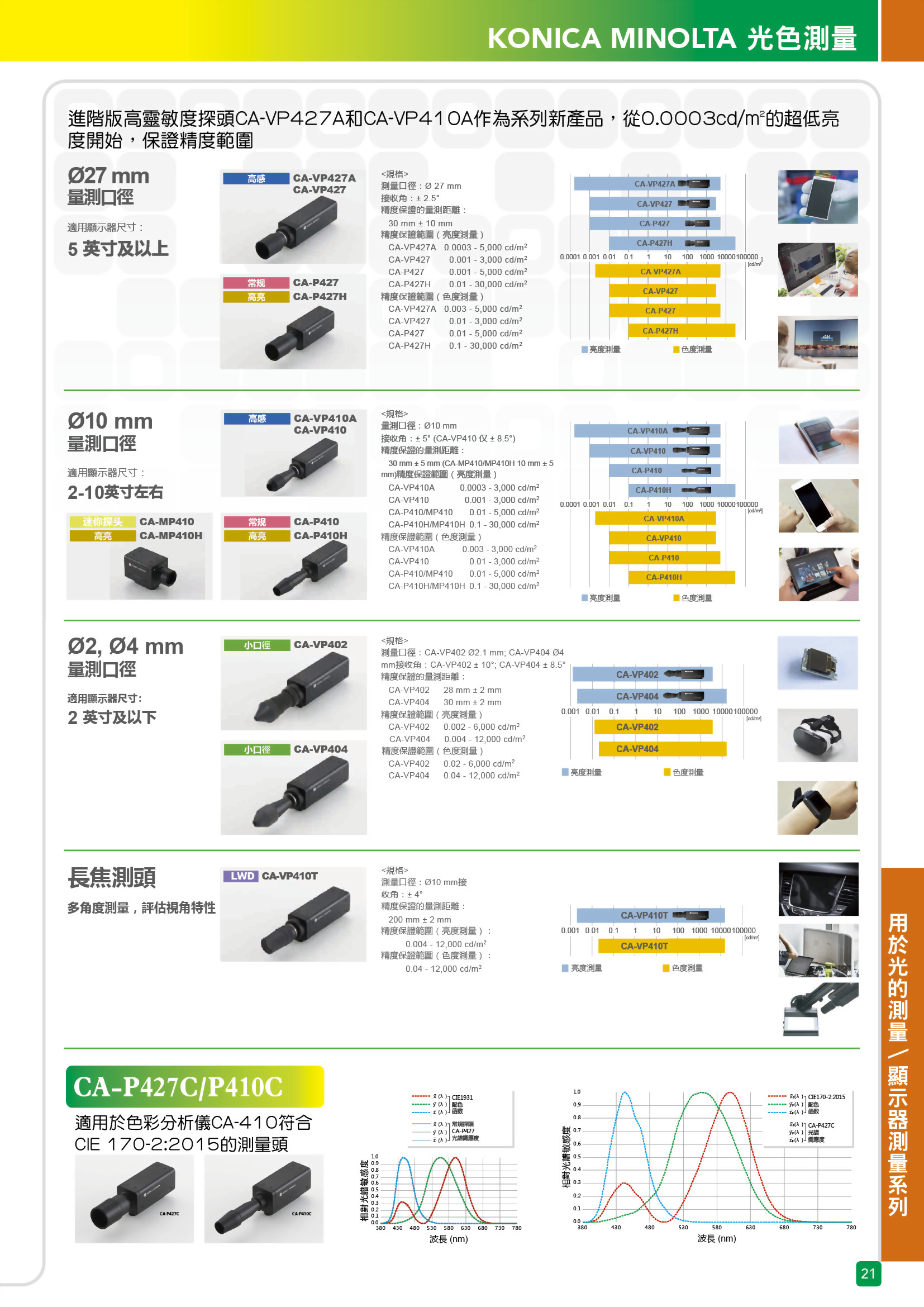

從低到高的亮度保證精度

通過更新以前型號的傳感器和電路，CA-410達到了25倍的保證精度範圍（與使用普通探頭CA-P427時的CA-310相比）。從超低亮度到高亮度，它有助於評估和調整HDR顯示器的準確亮度色度和伽瑪特性。陣容還包括適用於高強度測量的高強度探頭，例如背光模組。

CA-410 Color Analyzer 1


色度測量精度更高

CA-410通過提高XYZ濾鏡（與CA-310相比）的準確性，提高了對CIE 1931顏色匹配功能的光譜響應的準確性。另外，校準光源是近似LED光源顯示器的光譜的光源，從而提高了色度測量精度。有助於更精確的色度和白平衡評估，並針對寬色域顯示進行調整。

CA-410 Color Analyzer 2


通過更快的測量來提高生產率

與以前的CA-310相比，CA-410通過改善低亮度性能並加快了計算速度，實現了明顯更快的伽馬測量。利用LTD。AUTO模式可進一步提高速度，該模式可確保與CA-310相同或更好的精度以及可選的測量積分時間。通過加快測量速度，在測量速度很重要的情況下，例如顯示驅動器開發和OLED生產過程中的伽瑪調整，它有助於提高生產率。

CA-410 Color Analyzer 3

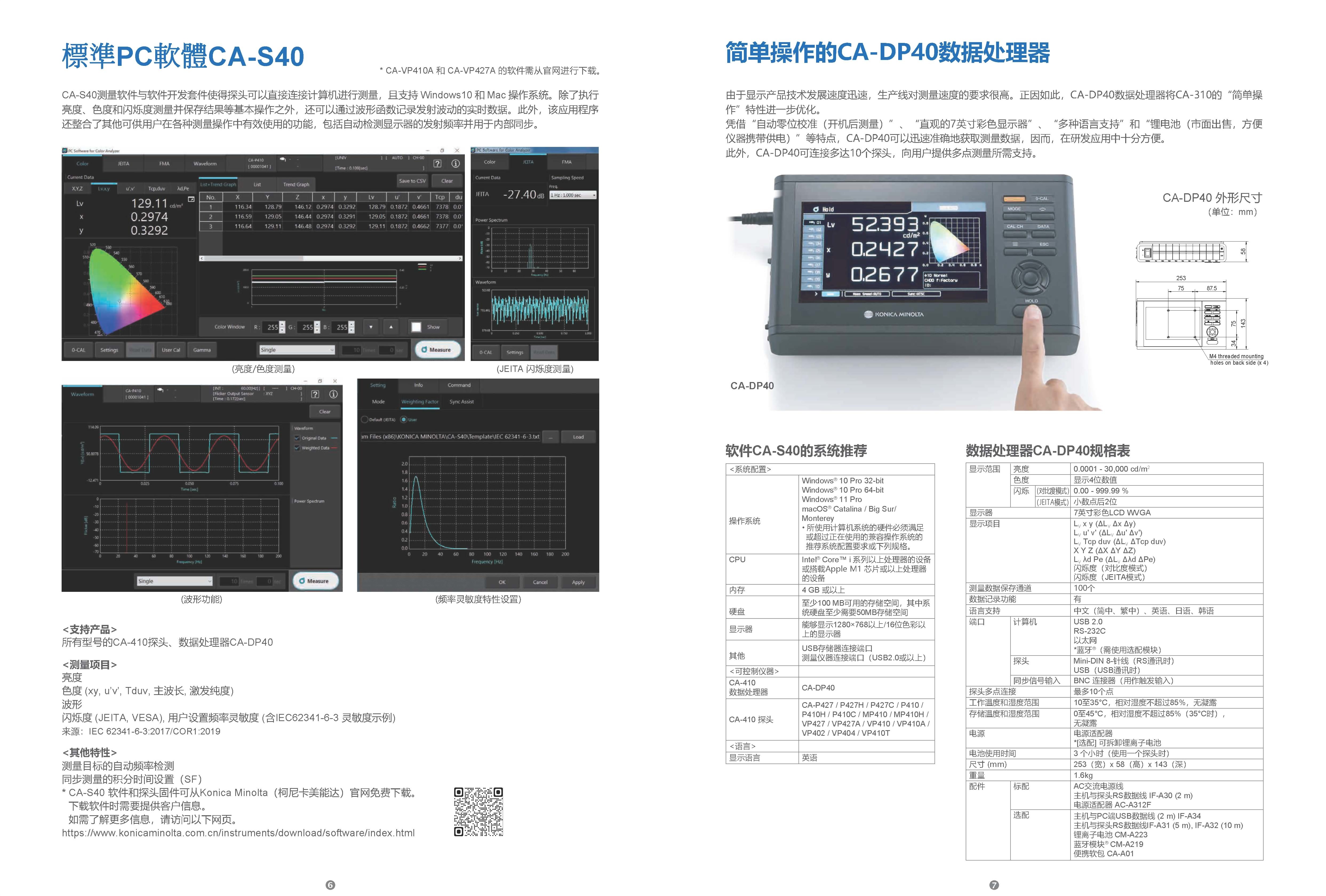

探頭標配軟件CA-S40

CA-410探頭標配有與macOS®以及Windows®7/10兼容的測量軟件CA-S40，並且可以通過僅安裝探頭直接連接到計算機進行測量。除了亮度和色度測量，閃爍測量和數據存儲外，還可以使用波形功能獲取發光波動的原始數據。此外，它還具有可在更廣泛的測量場景中使用的功能，例如使用SYNC Assist功能對內部同步設置進行微調。

CA-410 Color Analyzer 4


數據處理器CA-DP40是CA系列“易操作”功能的進一步發展。增加了研發應用程序的便利性，例如“通過自動歸零校准開機後立即開始測量”，“易於閱讀的7英寸彩色顯示屏”，“多語言支持”，“可攜帶鋰離子電池（另售）”有助於快速，可靠地獲取測量數據。最多可以連接10個探頭以支持多點測量應用。

CA-410 Color Analyzer 5

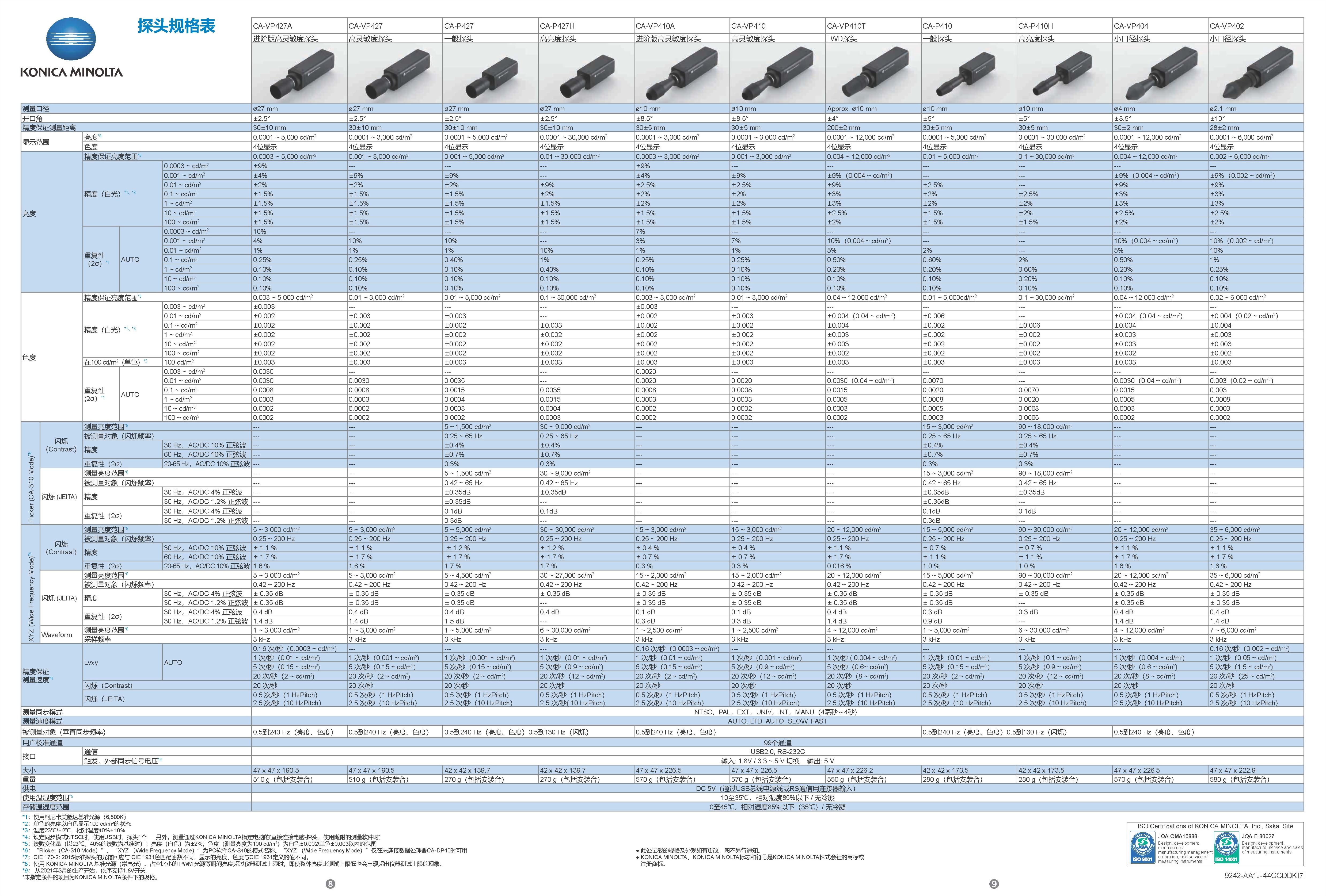

Model CA-VP427 CA-P427 CA-P427H
Measurement area ø27 mm
Acceptance angle ±2.5°
Accuracy guaranteed measurement distance 30±10 mm
Luminance
 (cd/m2) 		Accuracy guaranteed luminance range(cd/m2) 0.001 ~ 3,000 0.001 ~ 5,000 0.01 ~ 30,000
Accuracy (for white) >0.001 ±9% ±9% ---
>0.01 ±2% ±2% ±9%
>0.1 ±1.5% ±1.5% ±2%
>1 ±1.5% ±1.5% ±1.5%
>10 ±1.5% ±1.5% ±1.5%
>100 ±1.5% ±1.5% ±1.5%
Repeatability
(2σ) 		AUTO >0.001 ±10% ±10% ---
>0.01 ±1% ±1% ±10%
>0.1 ±0.25% ±0.4% ±1%
>1 ±0.1% ±0.1% ±0.4%
>10 ±0.1% ±0.1% ±0.1%
>100 ±0.1% ±0.1% ±0.1%
Chromaticity
(x,y) 		Accuracy guaranteed luminance range (cd/m2) 0.01~3000 0.01~5000 0.1~30000
Accuracy
 (for white) 		>0.01 ±0.003 ±0.003 ---
>0.1 ±0.002 ±0.002 ±0.003
>1 ±0.002 ±0.002 ±0.002
>10 ±0.002 ±0.002 ±0.002
>100 ±0.002 ±0.002 ±0.002
At 100 cd/m2 (for monochrome)  >100 ±0.003 ±0.003 ±0.003
Repeatability
(2σ) 		AUTO >0.01 0.002 0.0035 ---
>0.1 0.0008 0.0015 0.0035
>1 0.0003 0.0004 0.0015
>10 0.0002 0.0003 0.0004
>100 0.0002 0.0002 0.0003
Flicker
(CA-310 Mode) 		Flicker
(Contrast) 		Measurement luminance range (cd/m2) --- 5~1500 30~9000
Flicker (Hz) --- 0.25~65
Accuracy 30Hz
(AC/DC10% sine wave) 		--- ±0.4%
60Hz
(AC/DC10% sine wave) 		--- ±0.7%
Repeatability
(2σ) 		25Hz~65Hz
(AC/DC10% sine wave) 		--- 0.30%
Flicker
(JEITAI) 		Measurement luminance range(cd/m2) --- 5 ~ 1,,500  30 ~ 9,000
Flicker (Hz) --- 0.42Hz ~ 65Hz
Accuracy 30Hz
(AC/DC4% sine wave) 		--- ±0.35dB
30Hz
(AC/DC1.2% sine wave) 		--- ±0.35dB ---
Repeatability(2σ) 30Hz
(AC/DC4% sine wave) 		--- 0.1dB
30Hz
(AC/DC1.2% sine wave) 		--- 0.3dB ---
XYZ
(Wide Frequency Mode) 		Flicker
(Contrast) 		Measurement luminance range(cd/m2) 5~3,000 5~5,000 30~30,000
Flicker (Hz) 0.25~200
Accuracy 30Hz
(AC/DC10% sine wave) 		±1.1% ±1.2%
60Hz
(AC/DC10% sine wave) 		±1.7% ±1.7%
Repeatability(2σ) 25Hz~65Hz
(AC/DC10% sine wave) 		1.60% 1.70%
Flicker
(JEITAI) 		Measurement luminance range(cd/m2) --- 5 ~ 4,500  30 ~ 27000
Flicker (Hz) --- 0.42Hz ~ 200Hz
Accuracy 30Hz
(AC/DC4% sine wave) 		--- ±0.35dB
30Hz
(AC/DC1.2% sine wave) 		--- ±0.35dB ---
Repeatability(2σ) 30Hz
(AC/DC4% sine wave) 		--- 0.4dB
30Hz
(AC/DC1.2% sine wave) 		--- 1.5dB ---
Waveform Measurement luminance range(cd/m2) 1~3,000 1~5,000 6~30,000
Flicker (Hz) 3KHz
Accuracy guaranteed measurement speed Lvxy AUTO 1 time/sec (> 0.001 cd/m2)
5 times/sec (> 0.15 cd/m2)
20 times/sec (> 2 cd/m2) 		1 time/sec (> 0.01 cd/m2)
5 times/sec (> 0.9 cd/m2)
20 times/sec (> 12 cd/m2)
Flicker (Contrast) 20 time/Sec
Flicker(JEITA) 0.5 time/Sec
20 time/Sec
Measurement synchronization mode NTSC, PAL, EXT, UNIV, INT, MANU（4 ms ~ 4 s）
Measurement speed mode AUTO, LTD. AUTO, SLOW, FAST
Measurement target (Vertical synchronization frequency) 0.5~240Hz (luminance and chromaticity)、 0.5~130Hz(Flicker)
User calibration memory channel 99 Channel
Interface Communication USB2.0, RS-232
Trigger In & Out 5V
Size (mm) 47 x 47 x 190.5 42 x 42 x 139.7 42 x 42 x 139.7
Weight 510g 270g 270g
Power supply DC 5 V (input from USB bus power line or RS communication connector)
Operation temperature/humidity range 10 to 35°C, relative humidity 85% or less with no condensation
Storage temperature/humidity range 0 to 45°C, relative humidity 85% or less (at 35°C) with no condensation
Accessories Standard PC Software for Color Analyzer CA-S40, SDK for Color Analyzer CA-SDK2, USB Cable for Probe-PC (2 m) IF-A28, Hood for Probe, Lens Cap for Probe
Optional Conversion Cable IF-A29, BNC Conversion Cable IF-A35

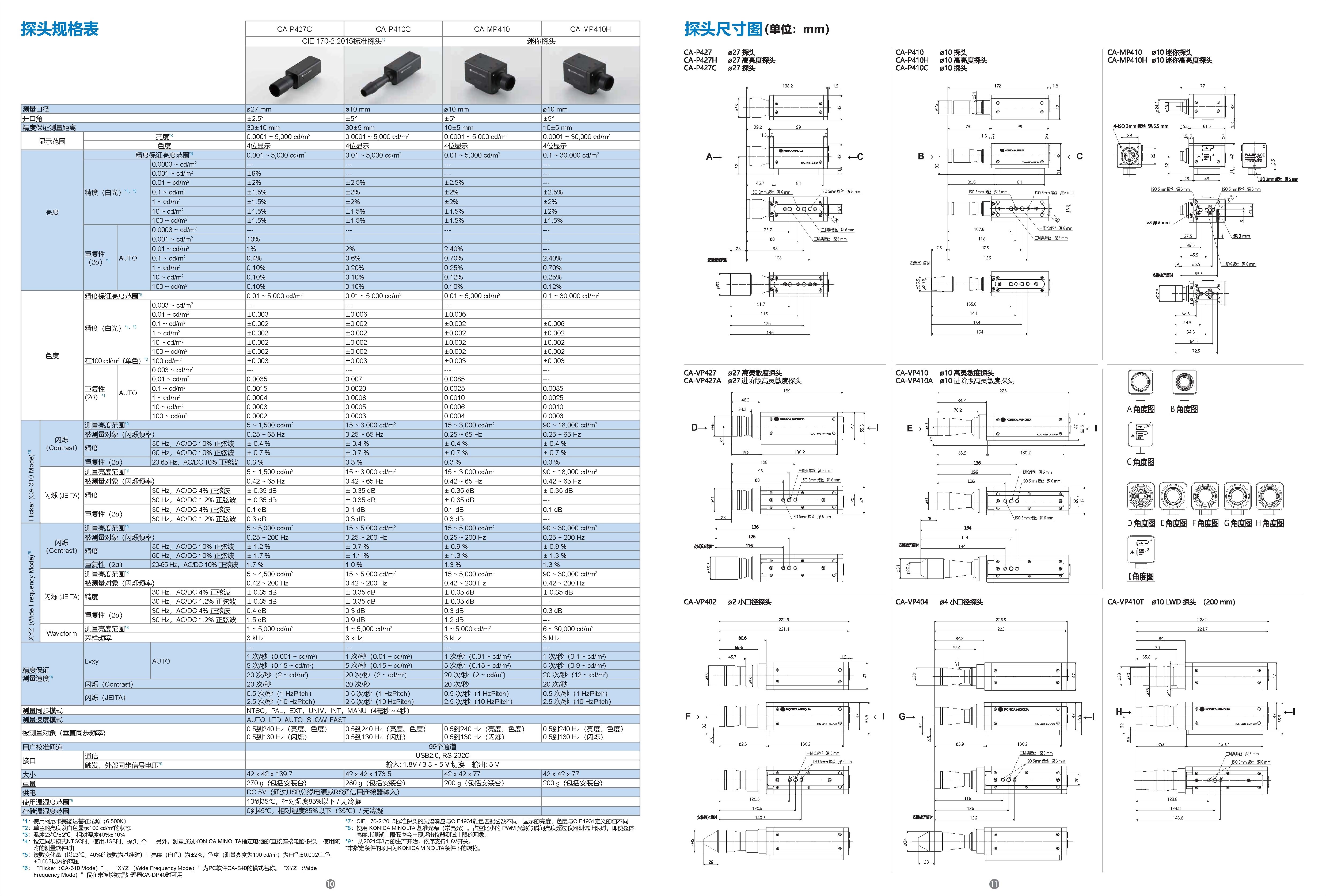

Model CA-VP410 CA-P410 CA-P410H CA-MP410 CA-MP410H
Measurement area ø10 mm
Acceptance angle ±8.5° ±5°
Accuracy guaranteed measurement distance 30±5 mm 10±5 mm
Luminance
 (cd/m2) 		Accuracy guaranteed luminance range (cd/m2) 0.001 ~ 3,000   0.01 ~ 5,000 0.1 ~ 30,000 0.01 ~ 5,000 0.1 ~ 30,000
Accuracy (for white) >0.001 ±9% --- --- --- ---
>0.01 ±2.5% ±2.5% --- ±2.5% ---
>0.1 ±2% ±2% ±2.5% ±2% ±2.5%
>1 ±2% ±2% ±2% ±2% ±2%
>10 ±1.5% ±1.5% ±2% ±1.5% ±2%
>100 ±1.5% ±1.5% ±1.5% ±1.5% ±1.5%
Repeatability
(2σ) 		AUTO >0.001 ±7% --- --- --- ---
>0.01 ±1% ±2% ±2.4%
>0.1 ±0.25% ±0.6% ±2% ±0.7% ±2.4%
>1 ±0.1% ±0.2% ±0.6% ±0.25% ±0.7%
>10 ±0.1% ±0.1% ±0.2% ±0.12% ±0.25%
>100 ±0.1% ±0.1% ±0.1% ±0.1% ±0.12%
Chromaticity
(x,y) 		Accuracy guaranteed luminance range (cd/m2) 0.001 ~ 3,000 0.01 ~ 5,000 0.1 ~ 30,000 0.01 ~ 5,000 0.1 ~ 30,000
Accuracy
 (for white) 		>0.01 ±0.003 ±0.006 ±0.006
>0.1 ±0.002 ±0.002 ±0.006 ±0.002 ±0.006
>1 ±0.002 ±0.002 ±0.002 ±0.002 ±0.002
>10 ±0.002 ±0.002 ±0.002 ±0.002 ±0.002
>100 ±0.002 ±0.002 ±0.002 ±0.002 ±0.002
At 100 cd/m2 (for monochrome)  >100 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003
Repeatability
(2σ) 		AUTO >0.01 0.002 0.007 0.0085
>0.1 0.0008 0.002 0.007 0.0025 0.0085
>1 0.0003 0.0008 0.002 0.001 0.0025
>10 0.0002 0.0005 0.0008 0.0006 0.001
>100 0.0002 0.0003 0.0005 0.0004 0.0006
Flicker
(CA-310 Mode) 		Flicker
(Contrast) 		Measurement luminance range (cd/m2) --- 15~3,000 90~18,000 15~3,000 90~18,000
Flicker (Hz) --- 0.25~65
Accuracy 30Hz
(AC/DC10% sine wave) 		--- ±0.4%
60Hz
(AC/DC10% sine wave) 		--- ±0.7%
Repeatability(2σ) 25Hz~65Hz
(AC/DC10% sine wave) 		--- 0.30%
Flicker
(JEITAI) 		Measurement luminance range(cd/m2) --- 15~3,000 90~18,000 15~3,000 90~18,000
Flicker (Hz) --- 0.42~65
Accuracy 30Hz
(AC/DC4% sine wave) 		--- ±0.35dB
30Hz
(AC/DC1.2% sine wave) 		--- ±0.35dB --- ±0.35dB ---
Repeatability(2σ) 30Hz
(AC/DC4% sine wave) 		--- 0.1dB
30Hz
(AC/DC1.2% sine wave) 		--- 0.3dB --- 0.3dB ---
XYZ
(Wide Frequency Mode) 		Flicker
(Contrast) 		Measurement luminance range(cd/m2) 15~3,000 15~5,000 90~30,000 15~5,000 90~30,000
Flicker (Hz) 0.25~200
Accuracy 30Hz
(AC/DC10% sine wave) 		±0.4% ±0.7% ±0.7% --- ---
60Hz
(AC/DC10% sine wave) 		±0.7% ±1.1% ±1.1% --- ---
Repeatability(2σ) 25Hz~65Hz
(AC/DC10% sine wave) 		0.30% 1% 1% --- ---
Flicker
(JEITAI) 		Measurement luminance range(cd/m2) 15~2,000 15~5,000 90~30,000 15~5,000 90~30,000
Flicker (Hz) 0.42~200
Accuracy 30Hz
(AC/DC4% sine wave) 		±0.35dB ±0.35dB ±0.35dB ±0.35dB ±0.35dB
30Hz
(AC/DC1.2% sine wave) 		±0.35dB ±0.35dB --- ±0.35dB ---
Repeatability(2σ) 30Hz
(AC/DC4% sine wave) 		0.1dB 0.3dB 0.3dB 0.3dB 0.3dB
30Hz
(AC/DC1.2% sine wave) 		0.3dB 0.9dB --- 1.2dB ---
Waveform Measurement luminance range(cd/m2) 1~2,500 1~5,000 6~30,000 1~5,000 6~30,000
Flicker (Hz) 3KHz
Accuracy guaranteed measurement speed Lvxy AUTO 1 time/sec (> 0.001 cd/m2)
5 times/sec (> 0.15 cd/m2)
20 times/sec (> 2 cd/m2) 		1 time/sec (> 0.01 cd/m2)
5 times/sec (> 0.15 cd/m2)
20 times/sec (> 2 cd/m2) 		1 time/sec (> 0.1 cd/m2)
5 times/sec (> 0.9 cd/m2)
20 times/sec (> 12 cd/m2) 		1 time/sec (> 0.01 cd/m2)
5 times/sec (> 0.15 cd/m2)
20 times/sec (> 2 cd/m2) 		1 time/sec (> 0.1 cd/m2)
5 times/sec (> 0.9 cd/m2)
20 times/sec (> 12 cd/m2)
Flicker (Contrast) 20 time/Sec
Flicker(JEITA) 0.5 time/Sec
20 time/Sec
Measurement synchronization mode NTSC, PAL, EXT, UNIV, INT, MANU（4 ms ~ 4 s）
Measurement speed mode AUTO, LTD. AUTO, SLOW, FAST
Measurement target (Vertical synchronization frequency) 0.5~240Hz (luminance and chromaticity)、 0.5~130Hz(Flicker)
User calibration memory channel 99 Channel
Interface Communication USB2.0, RS-232
Trigger In & Out 5V
Size (mm) 47 x 47 x 226.5 42 x 42 x 173.5 42 x 42 x 173.5 42 x 42 x 77 42 x 42 x 77
Weight 510g 280g 280g 200g 200g
Power supply DC 5 V (input from USB bus power line or RS communication connector)
Operation temperature/humidity range 10 to 35°C, relative humidity 85% or less with no condensation
Storage temperature/humidity range 0 to 45°C, relative humidity 85% or less (at 35°C) with no condensation
Accessories Standard PC Software for Color Analyzer CA-S40, SDK for Color Analyzer CA-SDK2, USB Cable for Probe-PC (2 m) IF-A28, Hood for Probe, Lens Cap for Probe
Optional Conversion Cable IF-A29, BNC Conversion Cable IF-A35
